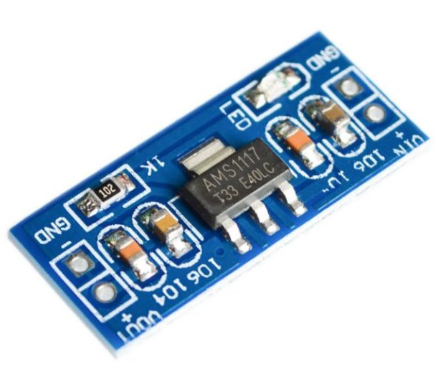

AMS1117 3.3V Power Supply Module
Original price was: ₹35.00.₹17.00Current price is: ₹17.00. Excld.tax
LM2596 DC-DC Step-down Buck Module with Display
₹106.00 Excld.tax

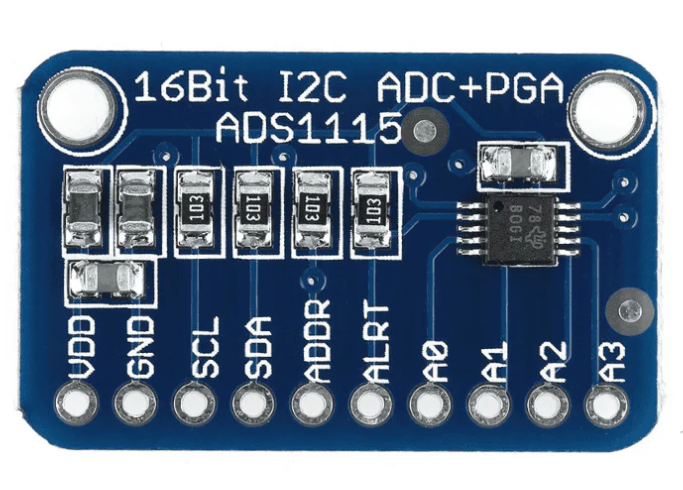

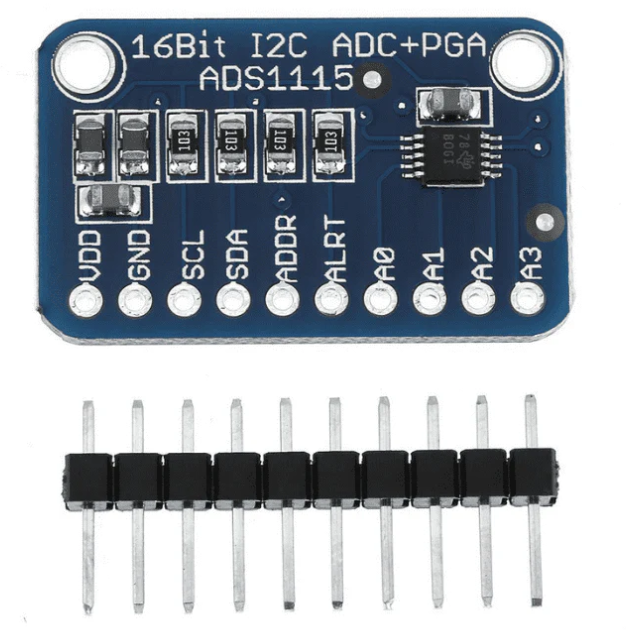

16 Bit I2C 4 Channel ADS1115 Module
- This is 16 Bit I2C 4 Channel ADS1115 Module
- It has a wide supply range of 2.0v to 5.5v
- It has a programmable data rate of 8sps to 860sps
- It has an internal low-drift voltage reference
- This module has an i2c interface with pin-selectable addresses.
- It has four single ends or two differential inputs.
- This module is a programmable comparator.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹137.00 Excld.tax
12
People watching this product now!
Payment Methods:
Description
16 Bit I2C 4 Channel ADS1115 Module is mostly used for microcontrollers project which needs an analog-to-digital converter or when you want a higher-precision ADC. ADS1115 16-Bit ADC- provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels.
Additionally, ADC also includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. It can run from 2V to 5V power/logic, can measure a large range of signals and it’s super easy to use. It is a great general-purpose 16-bit converter.
The ADS1115 chip is fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options so you can have up to 4 ADS1115 connections on a single 2-wire I2C bus for 16 single-end inputs.
